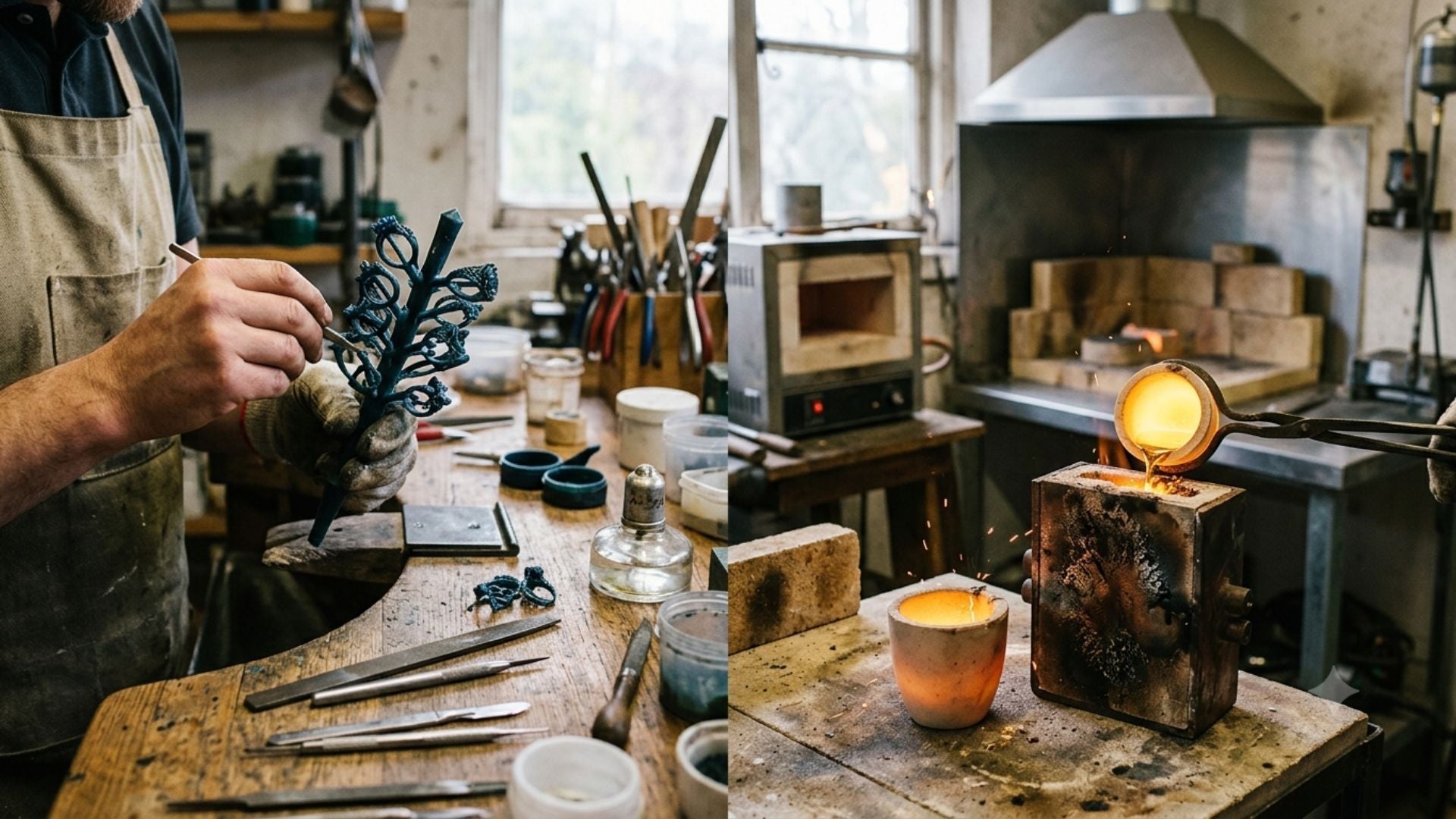

Lost Wax Casting Jewelry has been a cornerstone of jewelry manufacturing for centuries, allowing artisans and jewelry brands to create highly detailed pieces with exceptional precision. From engagement rings and pendants to intricate earrings and custom settings, this technique remains one of the most trusted methods in the industry.
Today, lost wax casting jewelry making is used by leading jewelry manufacturers around the world because it provides consistency, accuracy, and the ability to reproduce even the finest design elements. Whether creating a single custom piece or producing multiple copies of a design, the process delivers remarkable results.
At Antiquecut, we appreciate the craftsmanship involved in jewelry production and understand how important manufacturing techniques are in achieving high quality pieces. In this article, we explore everything about lost wax jewelry, including its history, the complete process, benefits, and its role in modern jewelry making.
What Is Lost Wax Casting Jewelry?
Lost Wax Casting Jewelry refers to a manufacturing process in which a wax model of a jewelry piece is created and then replaced with molten metal. The technique dates back thousands of years and has been used across civilizations to produce decorative objects, sculptures, and personal accessories. Today, it remains a standard method in the jewelry industry due to its reliability and flexibility.
The process begins with a wax replica of the intended design. Modern jewelers may carve wax by hand or use computer aided design (CAD) software combined with wax or resin printing technologies. Once the model is complete, it is attached to a wax tree with multiple pieces, allowing several items to be cast simultaneously. This stage is an important part of lost wax casting jewelry making because it determines how accurately the final product reflects the original design.
After the wax tree is prepared, it is placed inside a metal flask and covered with investment material, which hardens around the wax. The flask is heated in a kiln, causing the wax to melt and drain away, leaving behind an empty cavity. Molten metal is then poured or injected into the mold. Once cooled, the investment material is removed, revealing the finished castings. This entire sequence defines what many jewelers call the lost wax jewelry casting method.
Step-by-Step: The Lost Wax Casting Process Jewelry Artisans Follow
Transforming a raw block of wax into a finished piece of lost wax jewelry involves multi stage engineering. Here is how the process works in a modern studio like Antiquecut.
Step 1: Design and Wax Model Creation
Every piece begins with a physical model made from specialized jeweler's wax. Jewellers create these models in two primary ways:
- Hand Carving: Master bench jewelers use files, scrapers, and heated alcohol lamps to carve blocks of hard wax (often color coded blue, green, or purple based on hardness) into rings, pendants, or bezel.
- 3D Printing (CAD/CAM): Modern designers model pieces digitally using CAD software and print them in castable resin or photopolymer wax using high resolution resin 3D printers.
- Note on Metal Shrinkage: Wax models must be designed approximately 1.5% to 2.5% larger than the desired final metal piece to compensate for thermal metal contraction during cooling.
Step 2: Spruing the Model
Once the wax model is complete, a jeweler attaches it to a wax rod called a sprue. The sprue serves as the main channel through which molten metal will flow into the pattern.
For batch production, several wax models are welded to a central wax stem, creating what jewelers call a wax tree. The base of this tree attaches to a rubber flask base.
Step 3: Flask Preparation and Investment
The wax tree, mounted on its rubber base, is covered by a cylindrical steel flask. Next, the jeweler prepares investment slurry a plaster like mixture containing refractory materials such as silica and gypsum mixed with water.
- The investment liquid is mixed and placed inside a vacuum chamber to remove air bubbles.
- The slurry is poured into the metal flask, completely surrounding the wax tree.
- The filled flask goes through a second vacuum degassing cycle to ensure no air bubbles stick to the surface of the wax model.
- The plaster sets and hardens for 1 to 2 hours.
Step 4: The Burnout Cycle
After the investment sets, the rubber base is removed, exposing the bottom of the wax sprue. The flask goes into a high temperature programmable burnout kiln.
The kiln follows a strict thermal profile over 8 to 12 hours:
- 300°F – 400°F (150°C – 200°C): The main body of wax melts and drains out through the bottom opening.
- 700°F – 1000°F (370°C – 538°C): Residual wax boils and begins to carbonize.
- 1350°F (732°C): The investment reaches full burnout heat, completely vaporizing any remaining carbon or wax residue and hardening the plaster mold.
- Cooling Phase: The furnace lowers to the specific casting temperature required for the metal being poured (typically 900°F to 1100°F for gold and silver).
Step 5: Metal Melting and Pouring
With the wax gone, a hollow cavity remains inside the ceramic flask. The flask is moved directly from the furnace into a casting machine.
Jewelers use two main systems to force liquid metal into the cavity:
- Vacuum Assisted Casting: A vacuum pump pulls air out through the porous investment plaster, drawing molten metal down into the fine details of the mold cavity.
- Centrifugal Casting: The flask mounts into a motorized arm that spins at high speeds. Centrifugal force flings the molten metal from a crucible directly into the flask.
| Metal Type | Melting Point | Ideal Casting Flask Temp |
|---|---|---|
| Sterling Silver (925) | 1,640°F (893°C) | 900°F – 1,000°F |
| 14K Yellow Gold | 1,615°F (879°C) | 950°F – 1,050°F |
| 18K Yellow Gold | 1,700°F (926°C) | 1,000°F – 1,100°F |
| Platinum (950) | 3,215°F (1,768°C) | 1,300°F – 1,400°F |
Step 6: Quenching and Investment Removal
Once the metal solidifies (usually 5 to 10 minutes after pouring), the hot flask is picked up with tongs and submerged in a bucket of cold water. This process called quenching causes the investment plaster to explode away from the hot metal tree due to thermal shock.
Any remaining plaster is cleaned off using high pressure water jets or ultrasonic cleaning tanks.
Step 7: De spruing, Cleanup, and Finishing
The newly cast metal tree is inspected. Individual jewelry items are clipped off the central sprue trunk using heavy duty diagonal cutters or jeweler's saws.
The raw cast pieces have a matte surface and sprue stubs that must be addressed:
- Grinding: The remaining sprue connection point is ground flat using carbide burs and rotary sanding discs.
- Pre Polishing: The piece is tumbled with steel shot or hand sanded with progressively finer sandpaper grits (400 to 1200 grit).
- Stone Setting: Prongs, bezels, or channels are prepped, and gemstones are set into place.
- Final Polishing: The metal is buffed with polishing compounds like tripoli and rouge to reach its final smooth finish.
Benefits of Lost Wax Jewelry and Why It Remains Popular
One of the biggest advantages of lost wax jewelry is the ability to create highly detailed designs that would be difficult to manufacture using other methods. Intricate filigree patterns, hidden halo, engraved bands, and custom settings can all be reproduced with impressive accuracy. This makes the technique particularly valuable for engagement rings and personalized jewelry.
Another benefit of lost wax casting jewelry making is consistency. Since the process uses molds created directly from wax models, jewelers can produce multiple copies of the same design while maintaining uniform dimensions. This is especially useful for brands that offer popular collections or matching wedding sets. Customers receive jewelry that closely matches the original approved design.
Lost wax jewelry casting is also compatible with a variety of metals. Gold, sterling silver, platinum, and palladium can all be cast using this method. Additionally, jewelers can incorporate modern finishing techniques such as matte textures, high polish surfaces, and hand engraving after casting is complete. These advantages explain why Lost Wax Casting Jewelry continues to be an essential part of jewelry production worldwide.
Conclusion
Lost Wax Casting Jewelry remains one of the most effective and dependable methods for creating custom and production jewelry. By transforming a wax model into a finished metal piece, jewelers can achieve detailed designs with excellent precision. The process has evolved over time, integrating CAD technology and advanced casting equipment while maintaining the core principles developed centuries ago.
From engagement rings to pendants and bracelets, the lost wax casting process jewelry professionals use ensures that each piece captures the intended design. Whether you are interested in lost wax casting jewelry making or simply want to understand how your jewelry is produced, this technique offers a fascinating look into the artistry behind the industry.
At Antiquecut, understanding the craftsmanship behind every piece is an important part of the customer experience. The next time you admire a beautifully crafted ring or necklace, there is a good chance that lost wax jewelry casting played a role in bringing that design to life.
Design Your Own Jewelry with Antiquecut
Frequently Asked Questions
Q: What is Lost Wax Casting Jewelry?
Lost Wax Casting Jewelry is a manufacturing technique where a wax model is used to create a mold, which is then filled with molten metal to produce detailed jewelry pieces.
Q: How does the lost wax casting process jewelry manufacturers use work?
The process involves designing a wax model, creating a mold around it, melting the wax away, pouring molten metal into the mold, and finishing the final jewelry piece.
Q: What types of jewelry are made using lost wax casting?
Lost wax casting is commonly used for engagement rings, wedding bands, earrings, pendants, bracelets, and custom jewelry designs.
Q: Why is lost wax jewelry casting popular in the jewelry industry?
It is popular because it allows for precise detailing, consistent production, and the ability to create intricate designs that are difficult to achieve by hand.
Q: Can lost wax casting jewelry be customized?
Yes, lost wax casting jewelry making is widely used for custom jewelry projects, allowing adjustments to size, metal type, stone settings, and engravings before production.
Q: What metals are used in lost wax jewelry casting?
Common metals include gold, platinum, sterling silver, palladium, and other precious metals used in fine jewelry manufacturing.
Q: How long does lost wax casting jewelry making take?
The timeline varies depending on the complexity of the design, but most jewelry pieces can be completed within several days to one week.
Q: Is lost wax casting an ancient jewelry making technique?
Yes, lost wax jewelry has been used for thousands of years and was practiced by ancient civilizations such as the Egyptians, Greeks, and Romans.
Q: What are the benefits of the lost wax casting process in jewelry making?
Benefits include high detail accuracy, efficient production, design flexibility, scalability, and excellent consistency across multiple pieces.
Q: Is lost wax casting jewelry durable?
Yes, jewelry produced through lost wax casting is highly durable when made with quality metals and proper finishing techniques, making it suitable for everyday wear.
